Job #245: Radome Assembly Frame

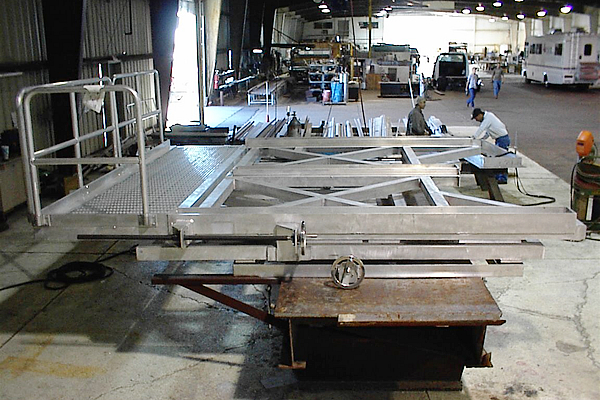

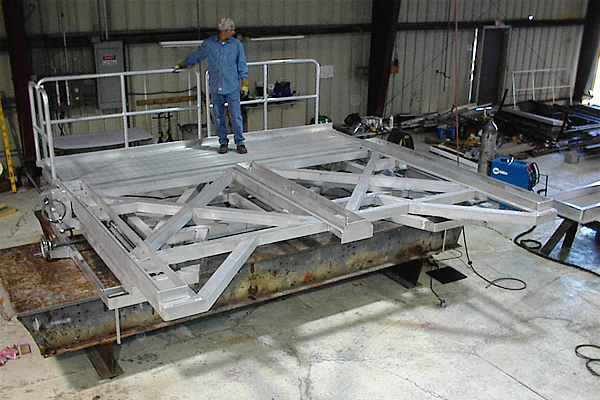

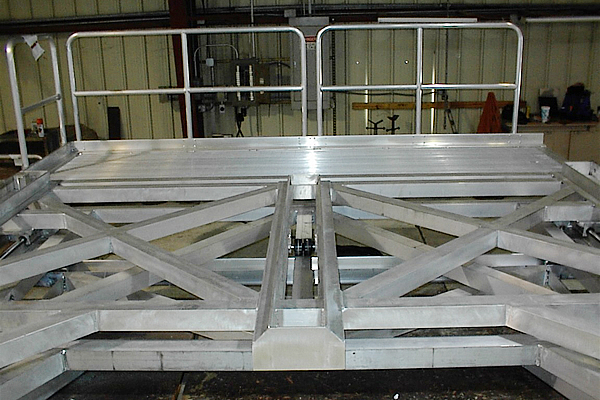

This specialty structure once mounted on it's lifting device will be used to assembly AWAC Radomes. This structures allows a fine tune alignment for the assembly of the electronics as well as the dome itself and has capability of moving along the XYZ axis. Incorporates use of operator safety features such as handrails, bearing and other protective covers.

Features include:

  • All Aluminum Structure

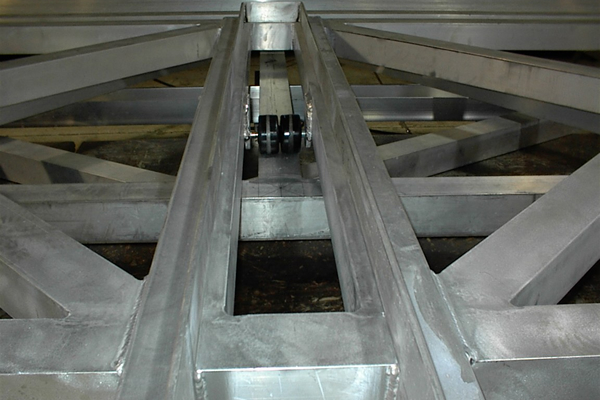

  • Incorporates Use Of Linear Slide Bearings

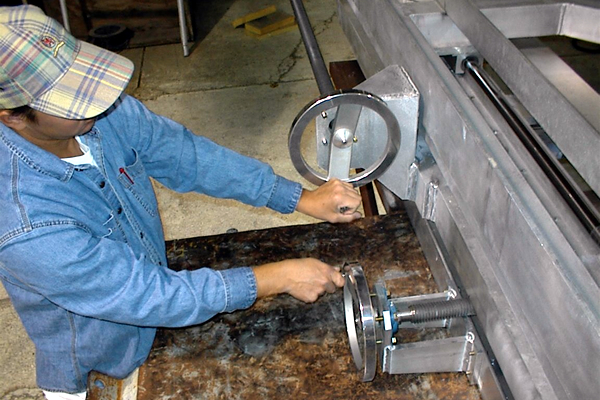

  • Fine Tuned Incremental Movements of Unit Using Ball Screw Assemblies
